Due to recent changes by Oracle, java applets have become difficult to run in the browser. To mitigate the troubles, Oracle has provided the following websites to help users troubleshoot: and Even after following the above instructions, loading applets may still show warning concerning “unsigned application” and “unknown publisher”. For Teahlab in particular, these warnings are due to the fact that we have opted not to pay a third party such as Verisign to sign our applets. Any warning that comes up when you try to run our applets should emphasize that our applets will always run with “limited access”, which is Oracle’s way of letting you know that teahlab doesn’t do anything on your computer except running the circuits you see: in other words, our applets are safe to run. Sincerely, The Teahlab Team. Introduction A serial adder is a digital circuit that can add any two arbitrarily large numbers using a single full adder.

Vhdl Code For Mealy Type Fsm For Serial Adder

Just as humans, the serial adder operates on one pair of bits/digits at a time. When you add the two 4–digit numbers 7852 and 1974, for example, you typically start by adding 2 plus 4 equal 6, then 5 plus 7 equal 12 (place 2 and carry the 1), and so on. Similarly, given the two 4–bit numbers 1011 and 0110, the serial adder starts by adding 1 plus 0 equal to 1, and then 1 plus 1 equal to 10 (place 0 and carry the 1), and so on. For a general demonstration, both a human person and a serial adder follow the same sequential method. Given two 4–figure numbers A 3A 2A 1A 0 and B 3B 2B 1B 0, we add two figures at a time starting with the least significant pair, and so on.

I have uploaded a Mealy-Type FSM for a Serial Adder (it is from the book 'Fundamentals of Digital Logic with VHDL Design by Stephen Brown and Zvonko Vranesic, second edition, page 515). I cannot understand why will FSM will remain in the same state for input valuations 01 and 10.

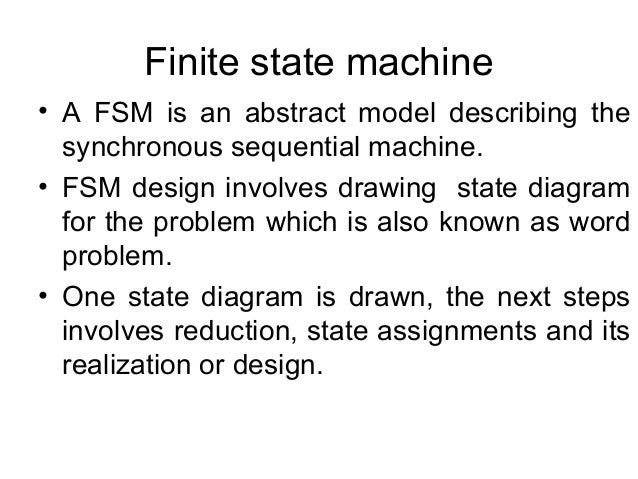

Designing a synchronous finite state machine (FSM) is a common task for a digital logic engineer. A finite state machine can be divided in to two types: Moore and Mealy state machines. 1 has the general structure for Moore and Fig. 2 has general structure for Mealy.

First, we do A 0 + B 0 = S 0. Second, we do A 1 + B 1 + carry = S 1, and so on; where the S figures represent the sum: A + B = S. Notice that in the operation A 1 + B 1 + carry = S1, carry is not one of the inputs being added; the inputs being added are A 1 and B 1. Furthermore, the value of carry does not depend on the inputs A 1 and B 1. Carry is simply a given condition, the consequence of something that happened in the past; namely, A 0 + B 0. Therefore, if we were tasked to “build a circuit that can add any two binary numbers using the sequential method that humans use,” we would treat the carry variable as a state variable.

(In computer engineering talk, any circuit with one or more state variables is referred to as a finite state machine.) Since the carry variable can either be 1 or 0, we say that our circuit will be a two states machine. When the circuit is in the state where carry = 0, the relationship between the inputs A and B and the output S is such that: if AB = 00 then S = 0; if AB = 01 then S = 1; if AB = 10 then S = 1; and if AB = 11 then S = 0. When the circuit is in the state where carry = 1, it also follows that: if AB = 00 then S = 1; if AB = 01 then S = 0; if AB = 10 then S = 0; and if AB = 11 then S = 1. We illustrate these relationships in the state diagram in Figure 1. Figure 1: State transition diagram for serial adder FSM To present the information in the state diagram in table form, we re-label the carry variable Z (Z for carry–out and z for carry–in) for convenience.

Patch italiano gothic 2 pc. We show the tabulated information in Table 1 below. From a finite state machine analysis perspective, we say z is the present state of the machine because z is presently available as one of the inputs to the full adder; Z on the other hand is the next state because it is one of the variables we are solving for — given the inputs A, B and the present state (or the carry–in) z. K-map For Z z/AB 00 01 10 11 0 0 0 0 1 1 0 1 1 1 K-map For S z/AB 00 01 10 11 0 0 1 1 0 1 1 0 0 1 Table 2: K-maps for the next state variable Z and the output variable S S = A B z Z = A B + A z + B z The reason these Boolean expressions look similar to the full adder equation is because they are the full adder expression. Here z is the carry–in signal and Z is the carry–out signal. Since the carry–out of the full adder becomes the carry–in to the full adder on the next operation, we us a D flipflop to save the carry signal.

We use a D flipflop because we need the data in Z to pass to z intact for the next operation. Any other flipflop will return some z that may or may not be equal to Z. Figure 2: Serial Adder Two Shift Registers is Better than Three Beyond presenting the serial adder circuit, our main interactive digital system at the top of the page also demonstrates how we use two 4–bit shift registers to store the addends and the sum of the addition. Our configuration is a bit creative, so we will go through an example to show that two registers is as good as three — in fact better since we save on cost. To add the two 4–bit numbers 1011 and 0010 using three shift registers would be simple enough: you would load 1011 into shift register A and 0010 into shift register B either in parallel or in series; and then register C would hold the sum 1101 after another four clock cycles. However to add the two numbers using only two shift registers is a bit more elegant. We show the entire operation in Table 3 below.

Initially we start with two empty shift registers: A = 0000 and B = 0000. Then, as the clock cycles we push the number 1011 into register A. Over the next four clock cycles, we kill two birds with one stone. We add 1011 to the 0000 in register B so that B becomes 1011. During the very same period we push 0010 into register A.

Hence, after T8 A = 0010 and B = 1011. Finally, from time T9 to T12, we add 0010 to the number in register B, resulting in B = 1101, which is the sum of 0010 and 1011! Clock cycle Serial Input Register A Register B T A3 A2 A1 A0 B3 B2 B1 B0 Initially 1 0 0 0 0 0 0 0 0 After T1 1 1 0 0 0 0 0 0 0 After T2 0 1 1 0 0 0 0 0 1 After T3 1 0 1 1 0 0 0 0 0 After T4 0 1 0 1 1 0 0 0 1 After T5 1 0 1 0 1 1 0 0 0 After T6 0 1 0 1 0 1 1 0 0 After T7 0 0 1 0 1 0 1 1 0 After T8 0 0 0 1 0 1 0 1 1 After T9 0 0 0 0 1 1 1 0 1 After T10 0 0 0 0 0 0 1 1 0 After T11 0 0 0 0 0 0 0 1 1 After T12 0 0 0 0 0 1 1 0 1 Table 3: Serial Adder Data Transfer Alternate Design Although it is often convenient to use D-flipflops in the synthesis of finite state machines, it is never necessary. We could very well use a JK flipflop to synthesize the specifications in Table 1. To do so we use the excitation table of the JK flipflop (Table 4) to map the JK inputs onto the serial adder state transition table (Table 1). We show the result in Table 5.

Mealy Machine Verilog Code Moore Machine Verilog Code. This page covers Mealy Machine Verilog Code and Moore Machine Verilog Code. Mealy Machine Verilog code. Following is the figure and verilog code of Mealy Machine.

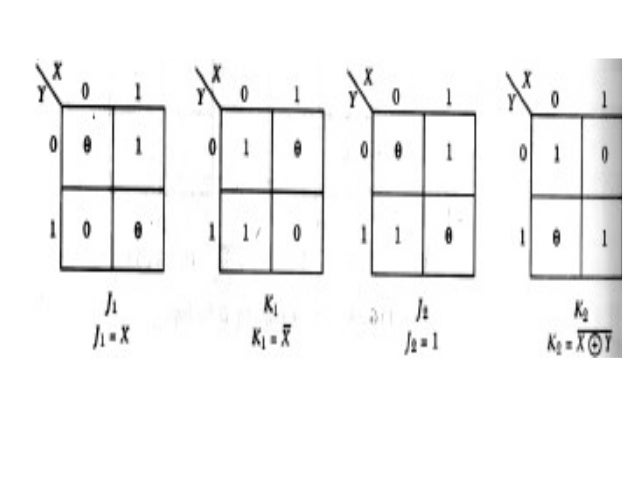

Notice that q and Q in table 4 map onto z and Z in table 5. Present state Inputs Next state Output Flipflop inputs z A B Z S J K 0 0 0 0 0 0 X 0 0 1 0 1 0 X 0 1 0 0 1 0 X 0 1 1 1 0 1 X 1 0 0 0 1 X 1 1 0 1 1 0 X 0 1 1 0 1 0 X 0 1 1 1 1 1 X 0 Table 5: JK State Table for Serial Adder From the table we extract the output equation for S and the input equations for J and K.

Z of course is still the output of the flipflop. S = A B z J = AB K = ( A + B ) The resulting circuit is in Figure 3. It is still a Mealy machine, as the output S still depends on both the state variable z and the output variables A and B.

Vhdl code for mealy type fsm for serial adder

Introduction A serial adder is a digital circuit that can add any two arbitrarily large numbers using a single full adder. Just as humans, the serial adder operates on one pair of bits/digits at a time. When you add the two 4–digit numbers 7852 and 1974, for example, you typically start by adding 2 plus 4 equal 6, then 5 plus 7 equal 12 (place 2 and carry the 1), and so on. Similarly, given the two 4–bit numbers 1011 and 0110, the serial adder starts by adding 1 plus 0 equal to 1, and then 1 plus 1 equal to 10 (place 0 and carry the 1), and so on. For a general demonstration, both a human person and a serial adder follow the same sequential method.

Given two 4–figure numbers A 3A 2A 1A 0 and B 3B 2B 1B 0, we add two figures at a time starting with the least significant pair, and so on. First, we do A 0 + B 0 = S 0. Second, we do A 1 + B 1 + carry = S 1, and so on; where the S figures represent the sum: A + B = S. Notice that in the operation A 1 + B 1 + carry = S1, carry is not one of the inputs being added; the inputs being added are A 1 and B 1. Furthermore, the value of carry does not depend on the inputs A 1 and B 1. Carry is simply a given condition, the consequence of something that happened in the past; namely, A 0 + B 0. Therefore, if we were tasked to “build a circuit that can add any two binary numbers using the sequential method that humans use,” we would treat the carry variable as a state variable.

When the circuit is in the state where carry = 1, it also follows that: if AB = 00 then S = 1; if AB = 01 then S = 0; if AB = 10 then S = 0; and if AB = 11 then S = 1. We illustrate these relationships in the state diagram in Figure 1. Figure 1: State transition diagram for serial adder FSM To present the information in the state diagram in table form, we re-label the carry variable Z (Z for carry–out and z for carry–in) for convenience.

We show the tabulated information in Table 1 below. From a finite state machine analysis perspective, we say z is the present state of the machine because z is presently available as one of the inputs to the full adder; Z on the other hand is the next state because it is one of the variables we are solving for — given the inputs A, B and the present state (or the carry–in) z. K-map For Z z/AB 00 01 10 11 0 0 0 0 1 1 0 1 1 1 K-map For S z/AB 00 01 10 11 0 0 1 1 0 1 1 0 0 1 Table 2: K-maps for the next state variable Z and the output variable S S = A B z Z = A B + A z + B z The reason these Boolean expressions look similar to the full adder equation is because they are the full adder expression. Here z is the carry–in signal and Z is the carry–out signal. Since the carry–out of the full adder becomes the carry–in to the full adder on the next operation, we us a D flipflop to save the carry signal. We use a D flipflop because we need the data in Z to pass to z intact for the next operation.

Any other flipflop will return some z that may or may not be equal to Z. Figure 2: Serial Adder Two Shift Registers is Better than Three Beyond presenting the serial adder circuit, our main interactive digital system at the top of the page also demonstrates how we use two 4–bit shift registers to store the addends and the sum of the addition. Our configuration is a bit creative, so we will go through an example to show that two registers is as good as three — in fact better since we save on cost. To add the two 4–bit numbers 1011 and 0010 using three shift registers would be simple enough: you would load 1011 into shift register A and 0010 into shift register B either in parallel or in series; and then register C would hold the sum 1101 after another four clock cycles. However to add the two numbers using only two shift registers is a bit more elegant.

Vhdl Code For Mealy Type Fsm For Serial Adder

We show the entire operation in Table 3 below. Initially we start with two empty shift registers: A = 0000 and B = 0000. Then, as the clock cycles we push the number 1011 into register A. Over the next four clock cycles, we kill two birds with one stone. We add 1011 to the 0000 in register B so that B becomes 1011. During the very same period we push 0010 into register A.

S = A B z J = AB K = ( A + B ) The resulting circuit is in Figure 3. It is still a Mealy machine, as the output S still depends on both the state variable z and the output variables A and B.
